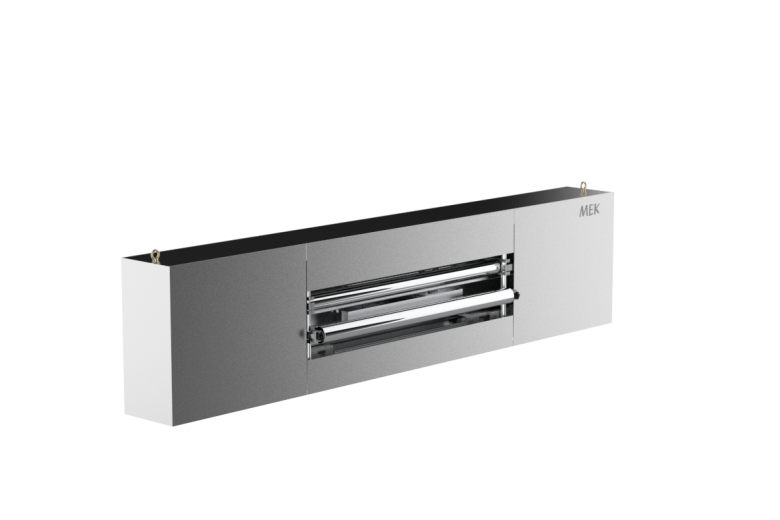

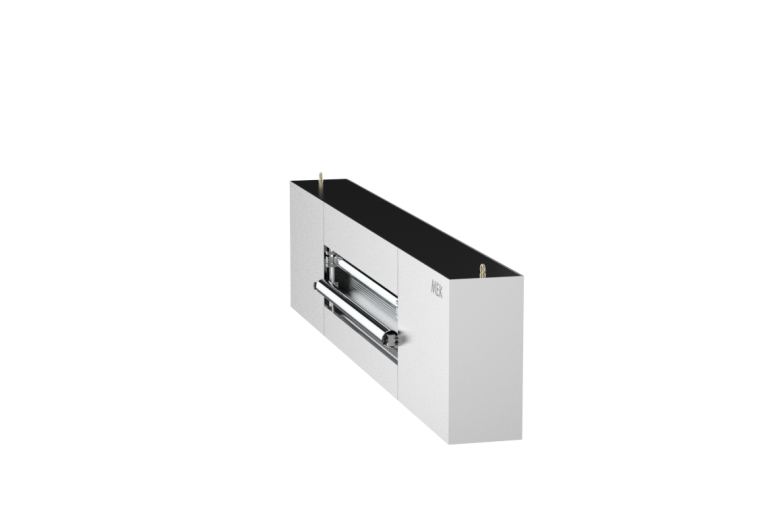

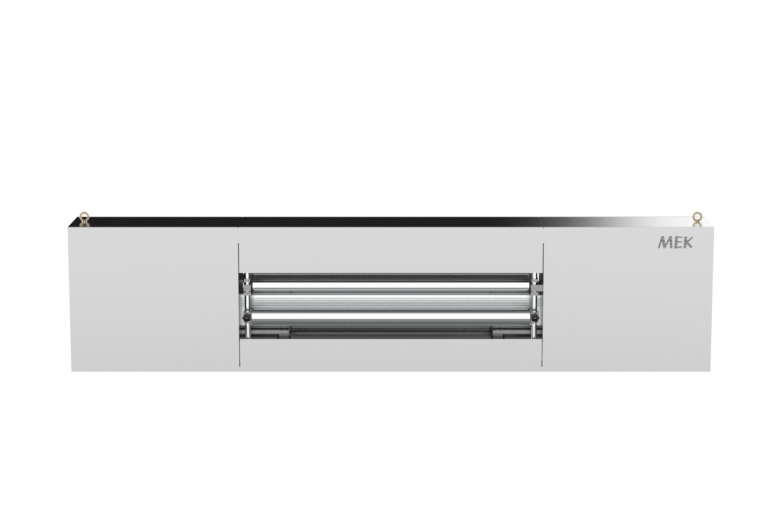

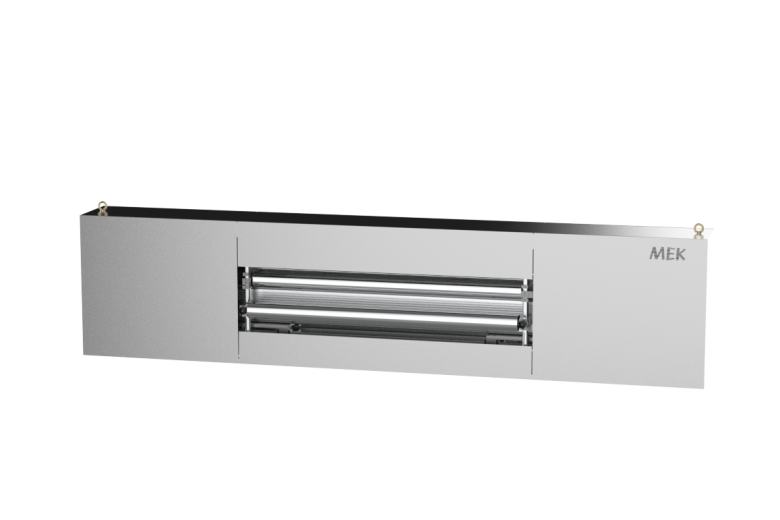

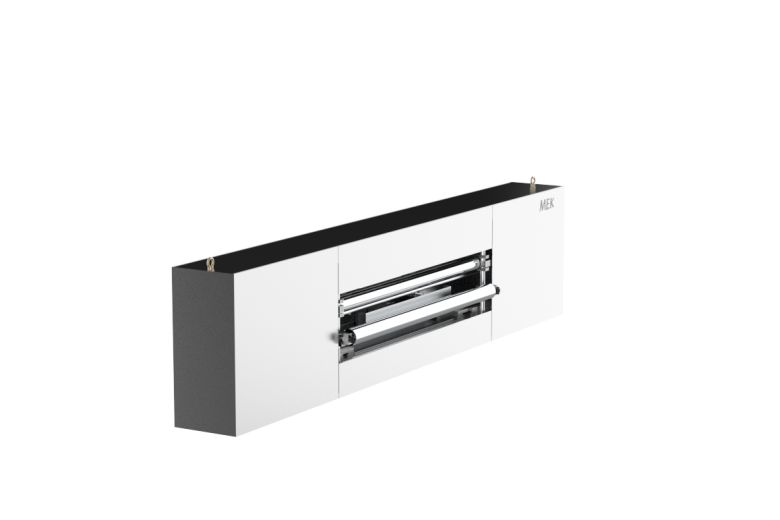

1050W-2 Thickness Gauge
The easy control and simple to maintain,
Precise Confocal-Dual sensor enables to measure and control the thickness automatically in sheet applications.
Precise Confocal-Dual sensor enables to measure and control the thickness automatically in sheet applications.
|
SPECIFICATIONS
| Description | |
|---|---|
| Application | secondary battery electrode plates,Sheet, plate extrusion |
| Measuring range | 0.03mm~3.6mm/0.3~30mm |
| Measuring width | max. 1,000mm, 2,000mm(O-frame) |
| Measurement pitch | 1mm (0.5-10mm) |
| Spot size | 70µm/300µm |
| Scanning Speed | 150mm/sec (50~350mm/sec) |
| Operating temperature | Up to 45℃(60℃) |
| Repeatability | - Reproducibility during base fabric shutdown±0.02µm(10Scan) - Reproducibility during electrode fabric movement±0.2µm (May vary depending on product quality) - Base fabric reproducibility during movement±0.1µm - Sensor resolution ±0.0025µm/0.25µm |
PROGRAM SOFTWARE
Features of the MEK Program
• User-friendly Configuration - Intuitive Interface
• Language Options - English, Chinese, Japanese
• User HMI and Measurement Data Communication (Optional)
• Customization to Suit User Requirements
Default Screen
| Description | |
|---|---|
| Run Environment | LabVIEW-based proprietary software |
| Data display | gsm (basis weight) / um (thickness) Spatial resolution: 1mm |
| Data compatibility | Microsoft Excel, CSV |
| Functions | Full automatic edge detection Full mapping of entire LOT (2D & 3D reconstruction) Real-time Profile & SPC (Statistical Process Control) Trend chart FFT (Fast Fourier Transform) Analysis of MD Profile LOT Statistics & History 4 & 20 Scan Sigma |
| Language | English, Korean, Chinese, Japanese (Hungarian translation available upon request) |
APC (Automatic Profile Control)
Features of the MEK Program
- • Optimized thickness control algorithm
- • Fast thickness control
- • Auto Mapping: Center bolt reference
- • Smooth Mill Roll appearance
- • Automatic adjustment of Control Gain within a few microns
- • Die bolt temperature feedback control (optional)
- • MD (Machine Direction) control available (optional)
Profile Changes After Applying APC
Before
APC control begins after the target thickness is changed from 60㎛ to 30㎛
After 5 minutes
Regulates Control Gain of the auto-die, reducing variation in thickness
After 10 minutes
Steadily analyzes and controls the thickness profiles
After 15 minutes
Within 15 minutes, produces the best result
